      Home >> Pallet Truck & High Lift >> Powered Pallet Truck >> WSP20E >> WSP20E

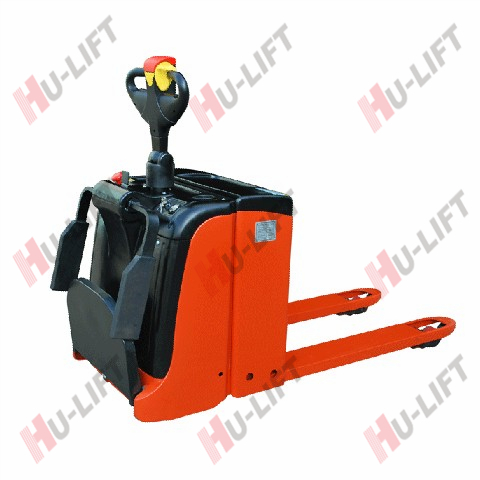

    WSP20E [Feedback(0)]
    Hu-LIFT NO.:1111801

    Specifications

    Photo Gallery

    Videos

    Feedback

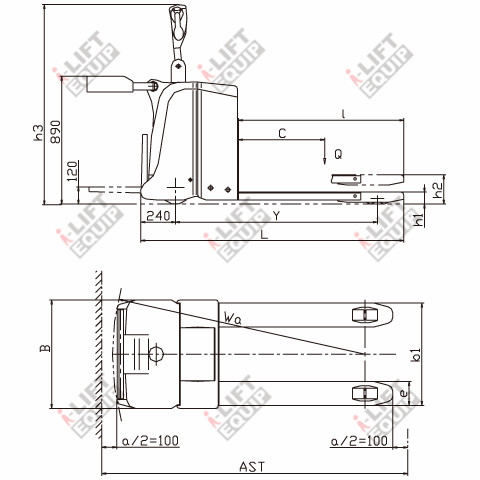

    Capacity kg(lb.):2000 (4400)
    Min. Fork Height mm(in.):85 (3.3)
    Max. Fork Height mm(in.):205 (8.1)
    Load Center mm(in.):600 (23.6)
    Wheelbase mm(in.):1400 (55.1)
    Overall Forks Width mm(in.):680/540 (26.8/21.3)
    Fork dimentions mm(in.):1150 (45.3)
    Front Wheel mm(in.):φ80×70 (φ3×2.8)
    Driving Wheel mm(in.):φ230×80 (φ9×3.1)
    Balance Wheel mm(in.):φ125×75 (φ5×3)
    Wheels Material/Number (Front/Driving/Balance Wheel):Polyurethane,4/1/2
    Overall Dimensions mm(in.):1830×710×1350 (72×28×53.1)
    Length to Front Face of Forks mm(in.):680 (26.8)
    Turning Radius mm(in.):1680 (66.1)
    Aisle width for pallets 1000×1200 crossways mm(in.):1865
    Travel Speed(with/without load) (Km/h):6
    Drive motor (W):1500
    Lift motor (W/V):800
    Turning motor (W):150
    Battery (V/Ah), kg(lb.):24/210
    Overall Height Without Handle mm(in.):890 (35)
    Net Weight kg(lb.):625 (1375)
    Type:Electric,Pedestrian,without platform
