IPPD/IPDK SERIES

▲ Manufactured from high quality carbon steel.
▲ Avoid snatch or shock loading.
▲ The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°. In lifting operations the clamps can be used in pairs or multiples.
▲ Meets ASME B30.20

IPPD series
▲ Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.
▲ The screw jaw of the body can be changed,also have a safety button.

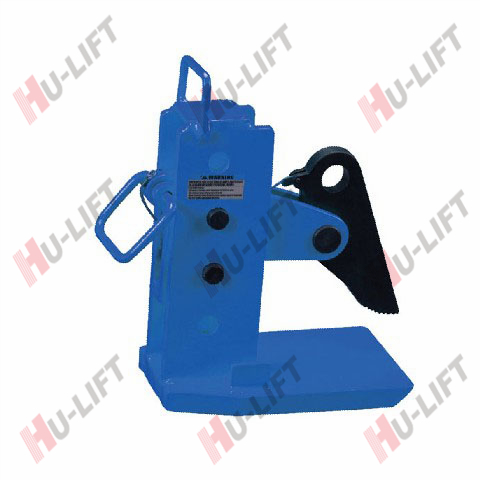

IPDK series
▲ Suitable for lifting and transport of multi steel plates.
▲ According to the plate can be suspended adjust the thickness of the clamp position of the tongue.

Hu-LIFT NO.	Model No.	Capacity WLL T(lb.)	Jaw Opening mm(in.)	Net Weight kg(lb.)	Construction	Surface
2212322	IPDK30	3 (6600)	0-180 (0-7.1)	19 (41.8)	Steel	Powder-coated
2212323	IPDK45	4.5 (9900)	0-240 (0-9.5)	26 (57.2)	Steel	Powder-coated
2212324	IPDK60	6 (13200)	0-240 (0-9.5)	40 (88)	Steel	Powder-coated
2212325	IPDK80	8 (17600)	0-240 (0-9.5)	51 (112.2)	Steel	Powder-coated
2212326	IPDK150	15 (33000)	0-240 (0-9.5)	72 (158.4)	Steel	Powder-coated
2212327	IPPD08	0.8 (1760)	0-25 (0-1)	2.5 (5.5)	Steel	Powder-coated
2212328	IPPD10	1 (2200)	0-30 (0-1.2)	3.5 (7.7)	Steel	Powder-coated
2212329	IPPD16	1.6 (3520)	0-30 (0-1.2)	4 (8.8)	Steel	Powder-coated
2212330	IPPD20	2 (4400)	0-40 (0-1.6)	5 (11)	Steel	Powder-coated
2212331	IPPD32	3.2 (7040)	0-45 (0-1.8)	6 (13.2)	Steel	Powder-coated
2212332	IPPD40	4 (8800)	0-50 (0-2)	6.5 (14.3)	Steel	Powder-coated
2212333	IPPD50	5 (11000)	0-55 (0-2.2)	7.5 (16.5)	Steel	Powder-coated
2212334	IPPD60	6 (13200)	0-65 (0-2.6)	10.5 (23.1)	Steel	Powder-coated
2212335	IPPD60(B)	6 (13200)	0-130 (0-5.1)	22 (48.4)	Steel	Powder-coated
2212336	IPPD80	8 (17600)	0-100 (0-3.9)	22 (48.4)	Steel	Powder-coated
2212337	IPPD100	10 (22000)	0-125 (0-4.9)	33 (72.6)	Steel	Powder-coated
